    150TBDGF: 150mm Double Glazed Thermal Break Front Glazed Framing

    Envirotech Façade Solutions has started our design process with a blank sheet. Instead of short cutting
    the process and utilising the traditional shopfront suites of the 1960’s, EFS has instead designed a range of commercial suites to suit todays’ requirements, standards, codes and architectural trends.

    The 150TBDGF suite is a 150mm x 60mm double glazed front glazed system designed to be used in most commercial and semi commercial applications. This suite also caters for commercial and residential multi storey applications with slab edge cover and stack joint options. The 150mm thermal break front glazed system not only allows for a greater flexibility in design but also larger spans under increased wind-loads than its 101mm counter-part. This is combined with the knowledge that when coupled with the stack joint option water ratings and structural movements are easily catered for.

    The system has a glazing pocket opening width of 39mm, which allows for the use of glass up to 35mm
    thick while still providing a minimum glass cover of 12mm ensuring compliance to AS/NZS4666. These design features translate to designers and fabricators having the ability to glaze thicker and therefore larger pieces of energy efficient glass than many of the other suites currently on offer to the market.

    This new design has male and female mullion with a minimum rebate depth of 18mm, which allows for a glass edge clearance of at least 6mm, significantly reducing the risk of scratching the frame or damaging glass edges during glass installation.

    From a performance perspective, these features mean that designers need not compromise their designs in order to achieve performance requirements for thermal, acoustic, structural and water ratings.

    The EFS 150TBDGF suite is complimented by its ability to seamlessly integrate with our ‘A-C 35’ & ‘A-C 50’
    awning/casement window systems and sliding door system to name just a few.

    Please contact our friendly sales or technical staff for help with your design requirements and if required, we can help customise a solution for your next project.

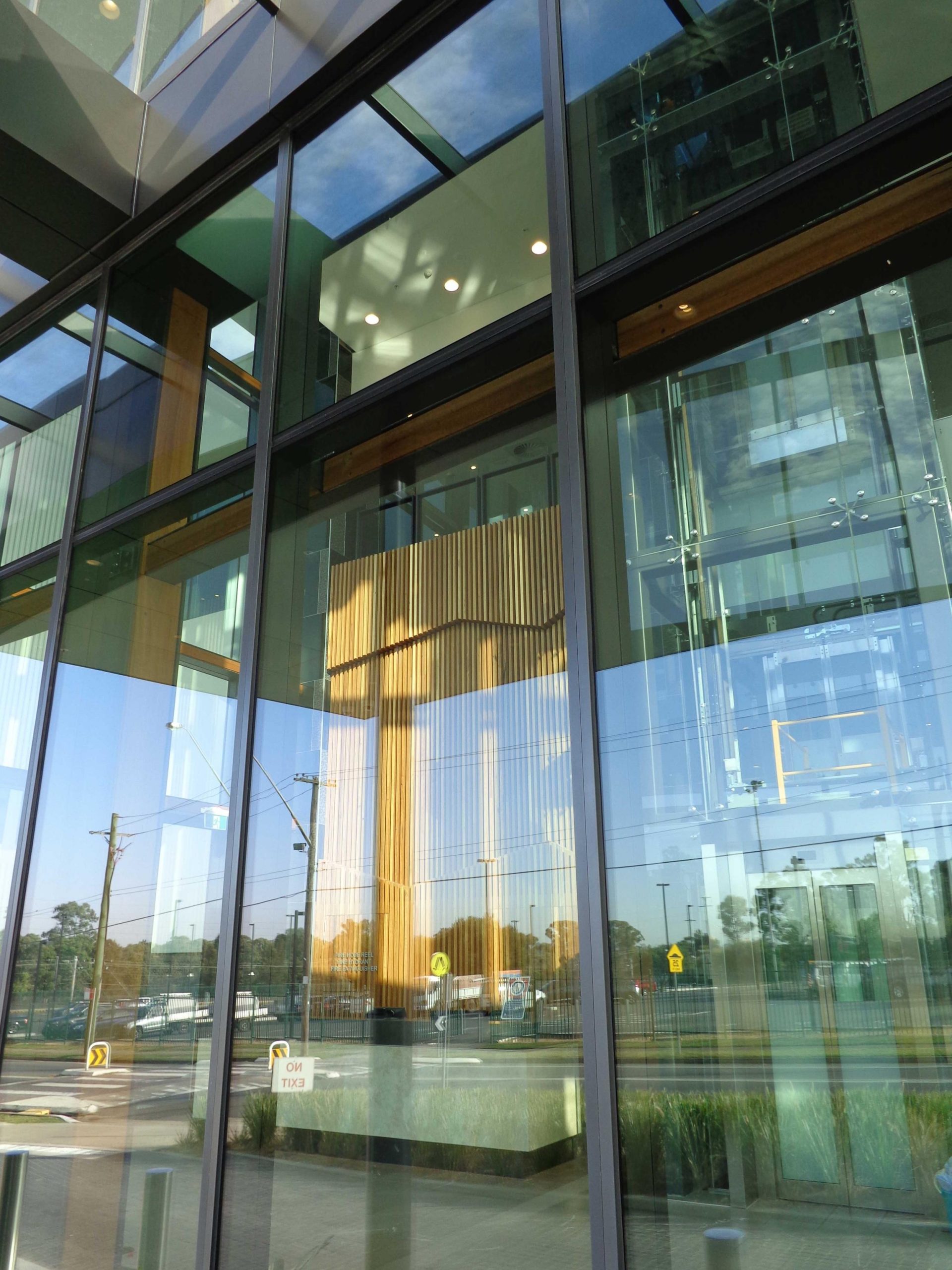

    Rooty Hill RSL, Rooty Hill

    Specification

    • Shopfronts to be manufactured using EFS (Envirotech Facade Solutions) 150TBDGF thermal break system.
    • Windows and Doors to comply with the latest edition of AS2047 including the performance.requirements therein.
    • Frame & mullion strengths to comply to the certifying engineers computations.
    • Glass to be selected, glazed and installed to ensure compliance with AS/NZS4666.
    • Glass performance to be determined by Section J of the BCA, WERS, or as specified.
    • Building Façade performance specifications – refer to AS/NZS4284.

    New Features

    • Thermal break for improved thermal performance
    • 150mm x 60mm frame – all vertical & horizontal members are a consistent 60mm width
    • No visible drainage slots or holes
    • Glazing Pocket opening width – 39mm
    • Glazing of up to 35mm Insulating Glass Units (IGU)
    • Minimum 12mm edge cover – conforming to AS/NZS4666
    • Glass Installation clearance of 6mm
    • Glass dimension calculation of daylight opening + 24mm throughout the entire front glazed range
    • Internal and external glazing options
    • Single sided captive wedge glazing for simplified glass installation
    • Santoprene or EPDM glazing alternatives, push in or run through options available
    • Slab Edge Cover Spandrel System option (dependent on engineers spec. for slab deflection)
    • Curtain Wall type Stack Joint option (dependent on engineers spec. for slab deflection)
